WD-200 Wireless Bus Bell Push System

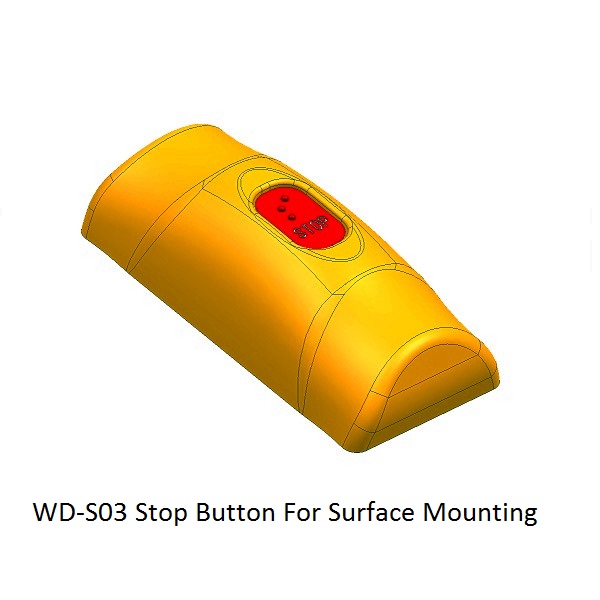

The WD-200 wireless bus bell push system consists of a wireless master unit /receiver (WD-M01) and 4 different types of STOP buttons (signal transmitters) for different installation. When a passenger press the signal transmitter button, the master unit makes DINGDONG sound or audio message to alert the driver that a passenger is ready to get off. The effective transmission distance between the master unit and transmitter is within 50 meters.

Specifications:

>Transmitting Frequency Range: 314.6MHz-315MHz

>Receiving Frequency Range:314.6MHz-316MHz

>WD-M01 Operating Voltage: 24V

>WD-M01 support ups to 256 STOP buttons (signal transmitter)

>Optional: support broadcast of 4, 8 or 256 pre-recorded messages when the STOP button

is pressed

>Optional: support external message broadcast for passersby outside the bus when the bus

stops
